ITIL Baseline - Mit Baselining zur optimalen IT-Dokumentation

The “Baseline” concept is firmly anchored in the IT Infrastructure Library (ITIL). It is not self-explanatory. And trying to make the term more understandable with “measurement basis” does not lead anywhere either. Instead, this is why we look at the concept of ITIL baselines. We will show you what it is all about and how you can implement it with i-doit and network discovery.

Where does the baseline concept come from?

The term baselining was first used in Great Britain in the late 1980s. At that time it was written down in version 1 of the IT Infrastructure Library (ITIL). Even still today the term appears in several places within ITIL literature.

What different types of baseline exist?

The ITIL documents describe not just one type of baseline, but three.

  • The ITSM baseline is the starting point for measures to improve services, from which the effectiveness of these measures is measured.

  • The performance baseline is defined as the starting point for measuring and later evaluating the performance of services.

  • The configuration baseline is described as a known and defined state of a configuration. This can be returned to, for example, if changes or releases fail. Snapshots should get a mention here. We want to point out that the baseline corresponds to a manual or digitally collected snapshot. However, not every snapshot is also a baseline.

Up to this point everything still sounds simple. In the following explanation, we will mainly deal with the Configuration Baseline and its practical application in IT operations.

Before we do this, it’s useful to take a look at the term “Configuration”. Once you understand what this is really about, the further examples will become even clearer.

The term “Configuration”

What at first glance looks like a translation of the German word “Konfiguration” has much more to it. That’s because It is not simply a defined combination of hardware and software components.

The ITIL glossary has the following definition:

” A generic term for a group of Configuration Items that are used together to deliver an IT Service or a more comprehensive part of an IT Service. “Configuration” also refers to the parameter settings for one or more CIs.”

At the first glance, this definition seems more confusing than enlightening. But the way it reads is more complicated than it actually is. What it really says, is that:

  • both the properties of a single Configuration Item
  • or the combination of several Configuration Items required for a service

represent a configuration. After all, a Configuration Item (CI) is the smallest possible documentation unit, the atom in the universe of IT documentation, so to speak. i-doit refers to these CIs as “objects”.

Here is the most important question: Is the current state also the target state?

If you want to introduce a CMDB in your company and add your data for the first time, you should first clarify a few things. First and foremost, you must answer the question of whether the current state of the IT infrastructure is actually “right”. This question should be easy to answer. However, if you investigate various different points of the company, the answer is no longer as clear as you might previously think.

Here is an example:

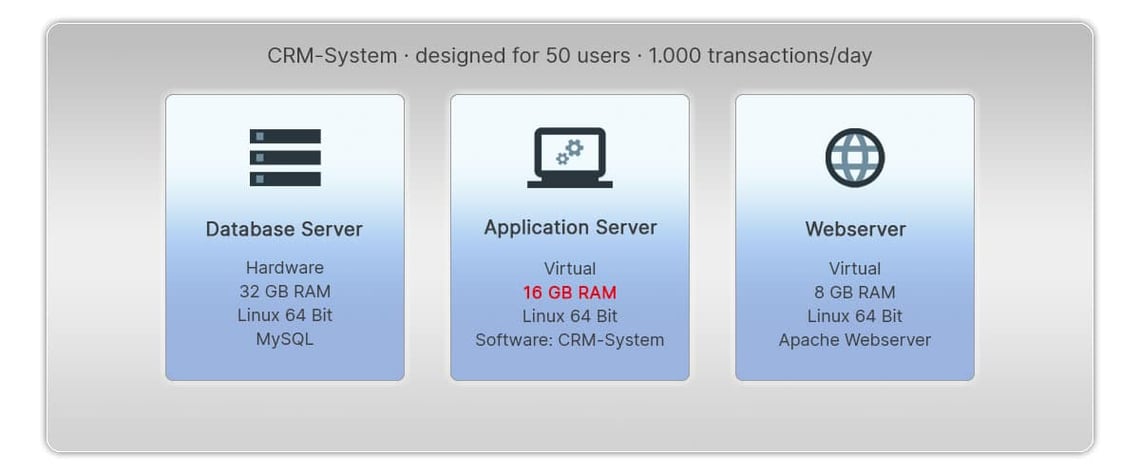

Original CRM system

A company introduces new software for CRM. This project needed an application server with 8 GB RAM. A virtual machine was provided by the IT department as agreed and charged to the business department.

The server is described in its original configuration in the project documentation. It hasn’t been changed by anyone. An external service provider sent the PDF document. This is a target documentation at the time the project began. All the participants in the project were satisfied. TARGET and ACTUAL were the same.

A software update will be installed after the project is completed. As it turned out, the memory of the application server had to be upgraded in order to do this. This was done by your friendly administrator quickly, with just a few mouse clicks. The virtual server is now allocated 16GB RAM.

CRM system after the update

The system runs to the users’ satisfaction. But the documented information starts to unravel. Strictly speaking, the target is still defined as 8 GB. The specialist department may not even be aware of the difficulties that occurred during the update. So what do the other processes refer to?

The administrator will say: “To the ACTUAL!

Ideally, in the event of an error, they will remember that at the time they increased the memory of the application server to 16 GB.

The specialist department (and perhaps the external service provider) will say that the target documentation is decisive. After all, this configuration was the status that everyone was aware of.

So, you see that even a relatively small thing can have a great impact.

Insufficient documentation of the target status

What happens in the event of a break(down)?

Does the error correction process refer to the old (and only) document? Then, in an officially completely correct manner,  restore an old target configuration after a failure. However, the application will not work now. The result is unnecessary research and time lost until the CRM service is restored.

The reason is clear: there is insufficient documentation of the target status.

A discrepancy in the main memory of a server can already create a significant problem. However, if small changes to configurations affect the licence management, they can be even more cost-intensive for the company. Once security-related aspects enter the equation, the consequences of an incorrect SET configuration can be disastrous.

TARGET or ACTUAL is usually not defined

An admin is usually responsible for the setup and ongoing maintenance of a CMDB. As a technician, one must assume that the current status in the network is also the desired status. After all, the system is running. This has an associated  problem, because neither ACTUAL nor TARGET are defined. It is only a question of the functional status. This is assumed to be the basis for a recovery in case of an error.

The simplest way to create such a status is with snapshots of virtual environments or with backups at fixed times. These snapshots are supposed to be functional. We have become accustomed to not documenting them further.

The same applies to the configuration of a network. The software installed on clients is also usually neglected. It doesn’t matter how it got there. In the best case scenario, the backup log contains a one line report: “Full backup from 29.02.2020.”.

Lack of documentation and the specialist departments

But how do the people in charge of the various departments see it? How do those responsible for budgets, accounting or processes deal with non-existent documentation?

If we only document the ACTUAL state by means of a snapshot, we may miss something important. In the aforementioned example, someone has to pay for the difference created by the 8GB allocated. In other cases the licence has to be adjusted. The target documentation must be updated and distributed to the right people. It may also be possible to find out why our change process allows for sudden differences from the ACTUAL to the TARGET.

All of this is reason enough to talk about how to deal with past omissions and inconsistencies in a project. But it is also reason enough to set out a baseline that is clearly defined for everyone involved. A clear basis must be created, which can be worked towards and from which work can continue.

The baseline: Equality of technology and organisation

One thing will quickly become clear: The technical snapshot alone is insufficient. We also need to be able to rework, adapt and enrich it with additional information. We also want to plan it in the future. That’s where we come in.

Here is the baseline.

We draw a line and say: each part, including accounting, technology, licences and documentation have agreed on this one truth. That is the new target. There must be no deviations, for any reason. If there are, we want to discover them and take them into consideration!

The planning of the baselines

A baseline can be triggered by many things. In our example, the new release of the CRM software has provided the reason to expand the memory of the server. This means that we also need more memory for backup and more time to restore. Perhaps a new version of the web server was installed during the update or PHP has been updated.

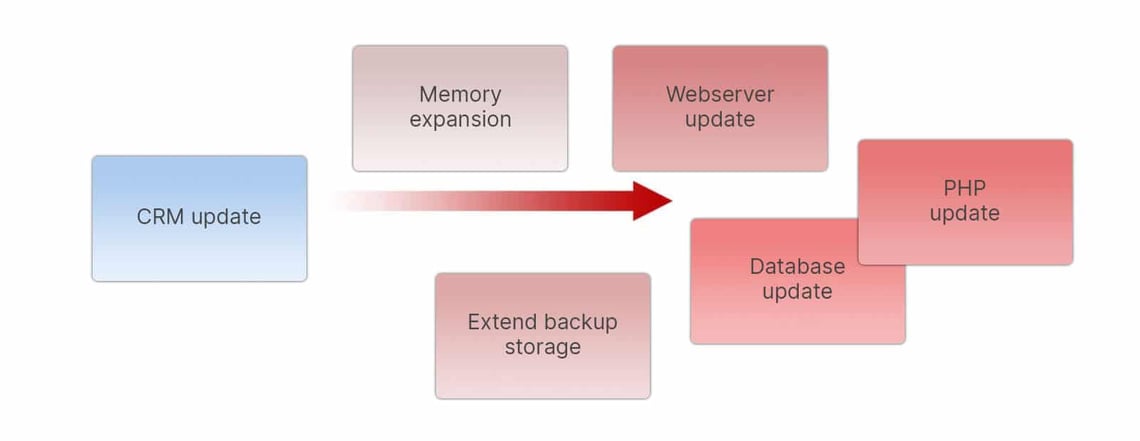

itil baselines consequence of an update

Has the database also been updated? If so, this automatically leads to a rework for all other applications running on the database cluster. All in all, our baseline “CRM Update Spring 2020” therefore comprises many individual points. These are directly related to each other and form an internal baseline. This baseline is now our new target plan. For invoicing, for backup concepts, for licence management, in the case of malfunction and finally for our entire IT documentation.

Start of the Configuration Control

You define the first baseline the first moment you enter data into the CMDB. It is irrelevant whether this is something official or not. All other information and documentation becomes outdated. From now on, these may only be used as an historical reference. You could, for example, add them to the corresponding configuration item as a hyperlink or document.

From now on your CMDB is the leading system for all ITSM processes. Keep in mind that the ACTUAL included in the CMDB is the target for the follow-up processes. Exception: You verify it immediately and adjust it if necessary.

This exception is important. It forces us to think about how much information we transfer to the CMDB at once. Do we transfer all the data directly or only what we can verify and correct within a reasonable time?

With this consideration, it should be noted that from the time of inclusion in the CMDB, all CIs in it are under “Configuration Control”.

For our aforementioned example, this means:

The change management process must ensure that the same situation does not occur again the next time the storage is upgraded. This applies to the revision of the target documentation, the triggering of billing and also to the ACTUAL documentation. Which data is able to be overwritten “just like that” must be determined in advance. We will return to this later.

Incidentally, ITIL has its own term for the process of initial inclusion in the CMDB and defines it as follows:

Configuration Identification

The activity responsible for collecting information about configuration items and their relationships and for loading this information into the CMDB. In addition, configuration identification involves assigning labels to the CIs themselves to enable a search for the corresponding configuration records.

Baseline with discovery tools

It’s now time for the next task. You have to take a snapshot of the configuration you have now found. This task is not to be underestimated, even in a small network. In a relatively short time frame, the configurations should be read out from the participating network nodes and entered into a database. No changes should be made during the initial recording.

ITIL Baselines: Manuelle Datenerfassung ist fast unmöglich

This task sounds easier than it is. The employees involved must log into the individual devices. They must then identify and read out the configuration data and store them in a structured (and standardised) way in a database. This task sounds like it can only be performed manually with a great deal of time and a sophisticated quality assurance process. Corrections of guaranteed typing errors should be taken into account from the outset.

Keeping this information up to date, even for just a few days, is a demanding challenge. Fortunately, this is where automation in the form of network discovery comes into play. We use JDisc as the tool of choice here. This puts us in an excellent position, because the manufacturer takes care of supporting the latest devices and standards in a timely manner.

Network discovery with JDisc

JDisc Logo

When we release JDisc on our network, every network node found from DNS, directory or ARP caches is verified. Different methods are used to read the configurations of the devices stored in the firmware or operating system.

Primarily, this saves us time. However, don’t underestimate the factor of quality either. Nobody types this fast and free from errors. The devices are then listed in tabular form, can be analysed, grouped and sorted according to certain properties and configurations.

Building groups in JDisc

We have a habit of searching for similar characteristics in things and of grouping them together. We can put this habit to good use with the data obtained through JDisc. In this way we are able to deal with the huge amount of data in the network.

We group similar assets like notebooks, PCs or IP phones. We also form separate scan groups from IP networks that are structured geographically. The combination of both gives us dynamic groups. For example, we could group clients in France and telephones in the USA.

So we structure processable data blocks already in the discovery tool. In this way, we make it possible to pre-qualify the data even before it is entered into the CMDB. In JDisc, these can be checked for completeness in advance and then transferred to the CMDB all together, at the same time. The interface to JDisc integrated in i-doit can handle its groups.

Rework and verification

Now the post-processing in the CMDB begins. This mainly concerns enrichment with data that could not be identified via the discovery. This includes contracts, accounting values and unique labels. This work can be distributed within the team and handled by appropriate regional supervisors. Important: TARGET and ACTUAL should be verified.

Once the TARGET and ACTUAL have been verified, completed and approved for all subsequent processes, this should be publicised. So, how should your colleagues know that the data is verified?

This information is indicated in the database. We need a note during the life cycle. The keyword here is “logbook”.

Creating a baseline in i-doit

i-doit IT-Dokumentation und CMDB Software: Logo Stellenangebote

The workflows that i-doit brings along are perfect as “notes”. For each workflow type, a Baseline is quickly created. The data imported from JDisc into the CMDB is added to a baseline. It is supplemented by a meaningful text.

Once the agreed process is completed, the task is set to “done”. Each action results in an entry for the objects in question. The screenshot shows us the LOG entry of a single workstation computer, which is easily undersatndable for anyone who looks at it later.

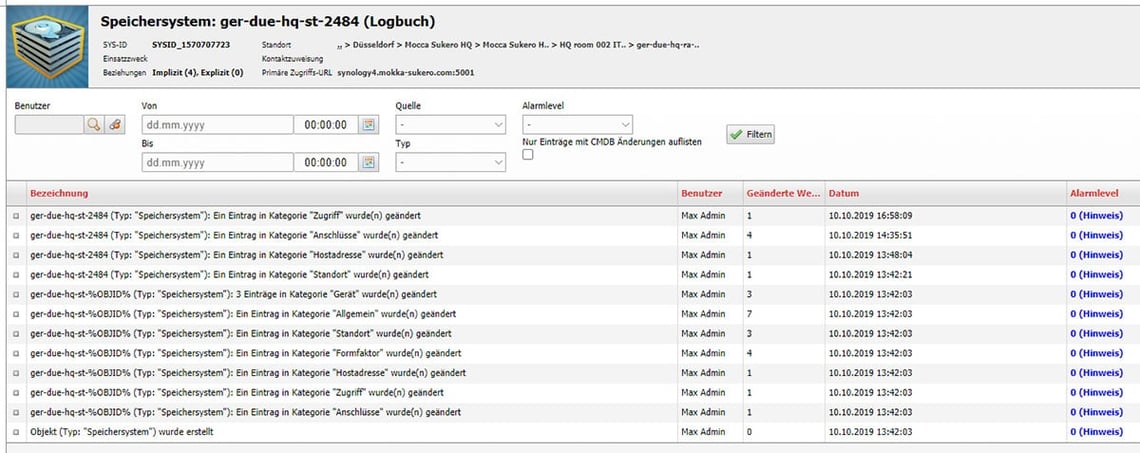

ITIL Baselines: Das i-doit Logbuch

The process for data transfer of assets

If data is to be transferred to the CMDB, we should follow a defined process. This process can look like the following:

  1. Announcement of a change. Indication that SHOULD and ACTUAL may differ.
  2. Changes are made to the equipment (update, new hardware etc.).
  3. Scan with JDisc and adoption of the new ACTUAL.
  4. Transfer of the new IST to the CMDB.
  5. Verifying the data in the CMDB. Compare SET and ACTUAL.
  6. Make any necessary adjustments to the IST. Repeat point 3.
  7. Finalise the changes. The new Configuration Baseline is now valid and is now under Configuration Control. Changes may no longer be made.

This all sounds very simple so far. You might get the impression that the interaction of CMDB and Discovery will solves all possible problems. However, this is not yet the case.

A configuration is more than discovery can do

Let’s take the example of our CRM system once again. At a first glance, we see that we have now transferred all related data to the CMDB. The system works and the users are satisfied.

However, the CMDB cannot do the thinking for you. If we want to know what belongs to the IT network of the CRM service, the CMDB can only give us a limited answer. In this case, human thinking is much more important than what the machine can do.

Even the definition of the configuration indicates that it is not only about the properties of individual CIs. The dependencies between them are also important. What is paramount, is the interconnection of several technical and human services. This network only makes the service used by the users possible.

So how can discovery help us to determine a service configuration? And where are the limits of this technology?

Discovery can recognise, not interpret

The data provided by the discovery system also includes the three servers we are looking at. As humans, we know (or can deduce), that they fill the roles of database server, application server and web server for our CRM service.

The Discovery also knows the corresponding indications. The system can detect running services, services and daemons. However, this does not mean that a service running on a server is also desired or necessary. Also it is not apparent for the services, to whom they are offered.

The systems need to be told that the superior service is the CRM service. Machines cannot recognise this alone. The Discovery solution is no different. It can look at the connections between the devices and analyse them, and the network topology can be analysed and recorded. However, the way this information is interpreted is left to us humans.

Discovery of Network-Topology

There is now a tempting opportunity. We could document the CRM service with the help of an automatically executed analysis of the network topology. However, there is some fuzziness that needs to be taken into account. If two machines are not connected at the time of the discovery run, this does not automatically mean that they are never connected. If two servers communicate via port 1433, we can assume that an MS SQL server is doing its job here. But we do not know exactly. Even when there is an open port, it doesn’t mean that it should necessarily be open or even that it is needed.

As a result, the Discovery saves us an enormous amount of analysis time. The information we receive gives us solid clues and enables further investigations to be carried out. The problem is that we cannot treat the data as truth. Is this data showing us the ACTUAL state or the TARGET state? It’s advisable to proceed here with caution. What we’re doing here is connecting patterns. But we are still far from complete knowledge.

The documentation of target and actual statuses

In order to transfer all this information to a common database like the CMDB, we need a model for the documentation. This model must be able to be followed by everyone involved. Therefore, ideally, It should be self-explanatory. Some different models are described in the 7th ITIL Baseline.

We separate the functional description and target documentation from the ACTUAL configuration identified with JDisc. And we define the following rules:

  • The SET configuration (in the graphic the four upper configuration items) may only be changed in the course of a baseline planning.

  • The ACTUAL configuration (the real assets) are identified and overwritten exclusively by Discovery. The workflow shown above ensures there’s order.
  • In order to be able to establish a relationship between target and actual, to analyse and compare it, we use the three connections (shown in red) that have to be established manually.

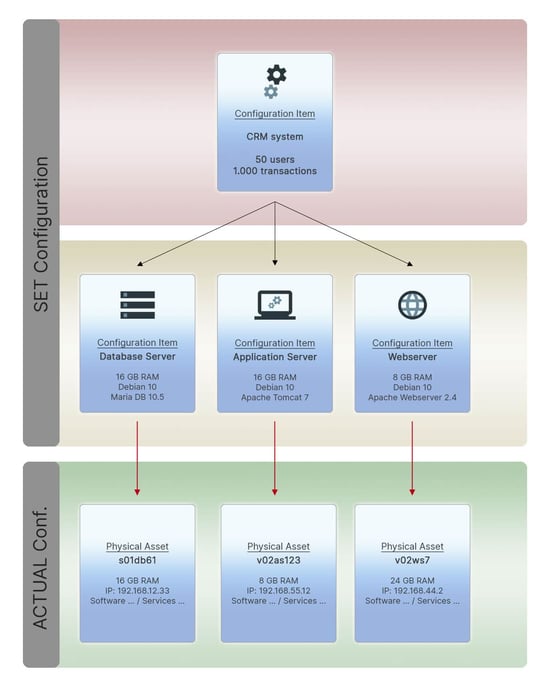

The following model could therefore be easily mapped in a CMDB:

ITIL Baselines SET Configuration

Configuration changes such as the following are also possible and self-explanatory:

ITIL Baselines SET Configuration Change

There are several advantages achieved by using this model:

  • Discovery runs can be carried out as often as they are required. JDisc regularly retrieves the actual data from the network.
  • When overwriting asset data in the CMDB, no complex rules are necessary.
  • The documentation of the target state can be done simultaneously in the CMDB independent of the ACTUAL state.
  • A temporal separation of target and actual documentation is possible. It is conceivable to start with the transfer of discovery (ACTUAL), followed by modelling of the TARGET state. It is also possible to do this in the reverse direction.
  • Short-term actions in the ACTUAL configuration can be traced, but do not change the SETPOINT.
  • The possibility of evaluation with intelligent reports (“show me configuration deviations of objects and their superior CIs”) is challenging but possible.

However, there are also some drawbacks that must not be hidden or ignored. For example:

  • More documented objects in the CMDB
  • IP addresses that are documented in the SOLL can no longer be freely assigned

Working with reference configuration items

For servers, applications or services, the model we have presented can be applied very well. SET and ACTUAL are documented in separate objects. However, if we’re looking at the clients, we can no longer apply the model in this way.

Nobody documents a suitable target object for each client. So instead, it’s useful to take a pragmatic approach and work instead with references. We define individual configuration items as a reference for the target configuration. These reference configuration items can be referred to, for example, with the help of an additional attribute “Link to the target CI”.

Advantages:

  • Only one reference object is required.
  • The new release of a standard client and its lifecycle can be documented in the same way.

Disadvantages:

  • The connections must also be made by hand.
  • Additional documentation objects in the CMDB.

    Summary: What does Baselining do?

    • There are various reasons to create a Configuration Baseline. These include changes to hardware or software, a mass rollout or even an inventory. It is a collective term.
      • A baseline represents a quality-assured, defined basis to which a regulated return can be made at a later date.
      • The baseline is always subject to documentation. It is referred to by processes that follow.
      • All states converge in the baseline. It is therefore desired to have the state of the systems, applications and configurations described in the baseline (SHOULD). In reality, it is as described (ACTUAL), and it is also functional.
      • The Baseline defines a new point from which the Configuration Control takes effect. Changes are only allowed with a change request.

      The challenges of baselining

      • Do not try to copy all objects from JDisc. It is unrealistic to do so, as you can’t assure the quality of large amounts of data being copied so quickly. Instead, you should already have manageable groups formed in JDisc.
      • Be aware that JDisc cannot reach and update all devices at a defined time. Work in an iterative manner and define – if possible – manageable units.
      • The achievement of a baseline must be visible in the CMDB database – e.g. in the logbook of the affected objects.
      • A planned baseline may be divided into several changes (RfCs). In this case, connections with the corresponding entries in the Change Management System are useful.

      What should be done once you have reached a baseline?

      • Document the new baseline. Remember that any change from now on is critical.
      • Make backups of snapshots and, if necessary, entire configurations.
      • Do you need to revise an overall written documentation? If so, then please remember to send it to the appropriate recipients (e.g. external parties in restart plans).
      • Remember to update all official documentation. This concerns the following examples: restart plans, disaster recovery plans or system certificates.
      • Reports may need to be renewed and resent.
      • Remember to export necessary data and import it into any existing target systems, e.g. data warehouses used throughout the company.
      • External documentation platforms should be equipped with the new data (e.g. USB sticks, emergency notebooks, cloud storage).
      • If the area of information security is affected, it is very likely that an audit will be required.
      • Think of the other stakeholders. They too must receive all relevant official information.

      Start with your first baseline

      Are you ready for your first baseline? You have our assurance that the optimal combination of JDisc and i-doit will give you the easy start you need, in the world of baselining. You can test both systems free of charge.

      i-doit IT-Dokumentation und CMDB Software: Logo Stellenangebote

      i-doit 30 day trial

      JDisc Logo

      JDisc Free Edition
